FAKRA Steckverbinder

Ab sofort bietet A-Switch FAKRA-Steckverbinder von FIT-Foxconn, die nach DIN 72594-2 zertifiziert sind, an. Diese werden speziell für die Verwendung im Automobilbereich entwickelt.

Der Einsatzbereich erstreckt sich von GSM-Mobilfunk, GPS-Antennen, einfachen Antennensignalen (z. B. UKW, Fernsehsignalen) über Hochfrequenz-Signale für Keyless-entry-System und digitale Kamerasysteme bis  hin zu Telematik.

Es sind

  • Mini-,
  • Single- und
  • Multi-FAKRA Stecker verfügbar,

die eine hohe Datenrate von 3~20Gbit/s und Frequenzen bis 9Ghz unterstützen.

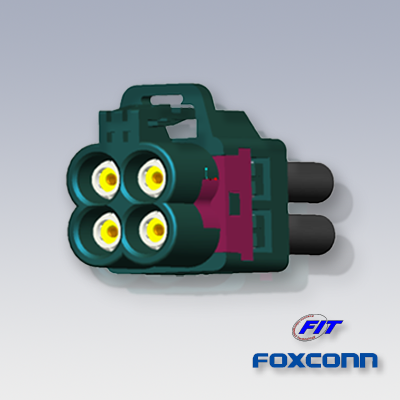

Mini FAKRA Stecker

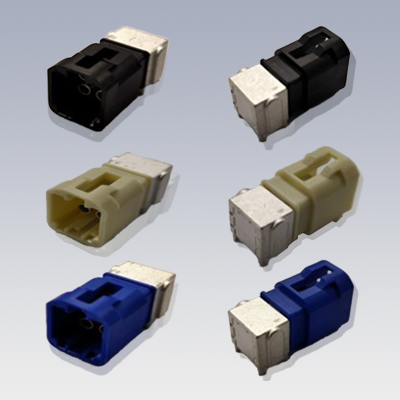

Produkte der Mini FAKRA-Stecker

Artikelnummern: KFH241Y-U12A0-7H / KFH241Y-U12B0-7H / KFH241Y-U12C0-7H



Physical Characteristic

Durability Life ≥25 cycles
Cable Cross Area N/A
Optional Pole No. N/A
Secondary Lock N/A
Key Code A/B/C
Pin Pitch 4.00+/0.10mm
Flammability                              UL94V-0
Prevention Finger Touch N/A
Pin No. 4

Mini FAKRA T

Electrical Characteristic

Contact Resistance

center conductor resistance: 24mΩ Max outer conductor resistance: Initial 5mΩ Max After environmental testing 6mΩ Max
Rated Current 1A MAX
Rated Voltage 60V
DWV                                        800V AC
Insulation Resistance Initial: 1000 MΩ Min After testing: 500 MΩ Min
Impedance                                 50Ω+/-10%
Frequency Range                      DC 0-6GHz
Insertion Loss Max.0.15(~1GHz)
Max.0.25(1~2.5GHz)
Max.0.5(2.5~6GHz)
Return Loss DC0～2GHz≤-15.6dB
2～3GHz≤-14dB
3～6GHz≤-12.7dB
VSWR (Voltage Standing Wave Ratio) max 1.20［0~1GHz］
max 1.30［1~2GHz］
max 1.50［2~6GHz］
RF Leakage 0-3GHz,-45dB max;
3-6GHz, -40dB max
Shielding ≥65dB 1GHz
HVIL N/A
Coding Mini FAKRA T

Environment Characteristic

IPGrade(mated)                         N/A
IP Grade(un-mated) N/A
Environmental Standards N/A
Salt Spray 48H
Operation Temperature -40℃ ~ +105℃

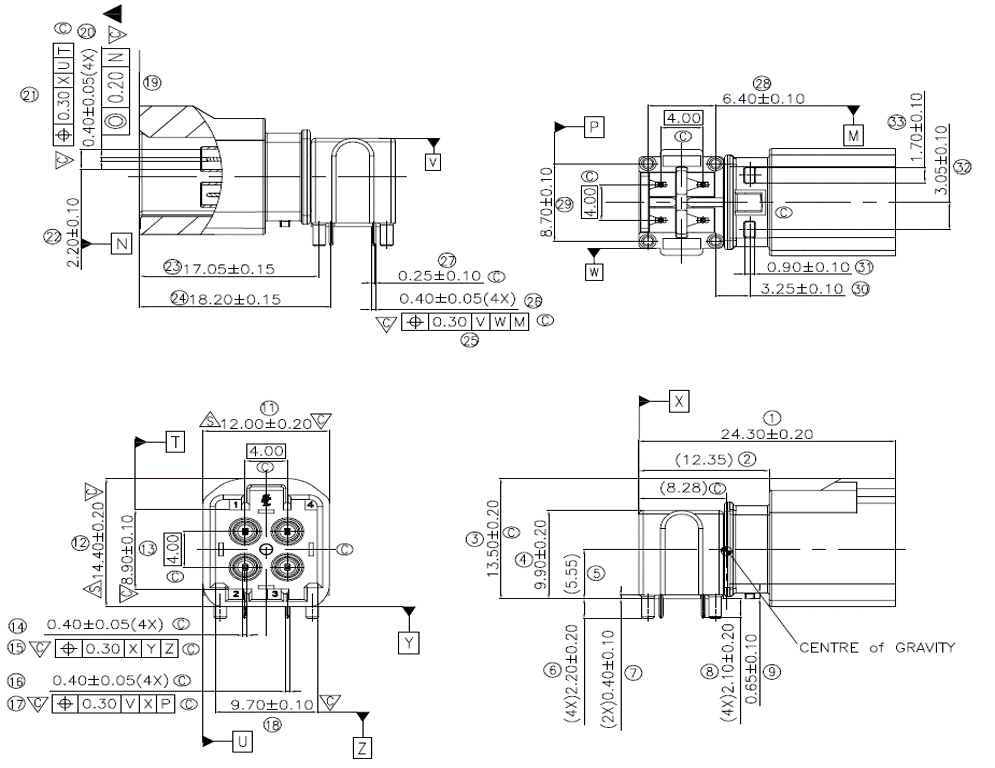

Skizze Mini FAKRA T



Produkte der Mini FAKRA-Stecker R

Artikelnummern: KFH241Y-U12A1-7F / KFH241Y-U12B1-7F



Physical Characteristic

Durability Life ≥25 cycles
Cable Cross Area N/A
Optional Pole No. N/A
Secondary Lock N/A
Key Code A/B
Pin Pitch 4.00mm
Flammability                              UL94V-0
Prevention Finger Touch N/A
Pin No. 4

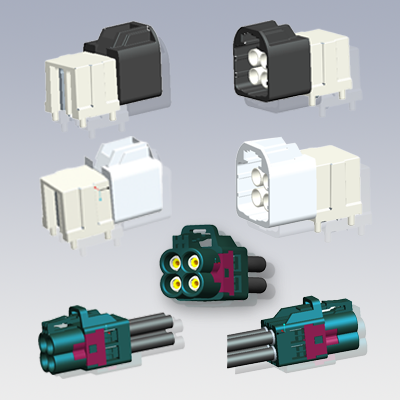

Produktabbildung Mini Fakra

Electrical Characteristic

Contact Resistance Center conductor resistance: 5mΩ Max Outer conductor resistance: 5mΩ Max
Rated Current 1A MAX
Rated Voltage 60V
DWV                                        750V AC
Insulation Resistance Initial : 1000 MΩ Min After testing: 500 MΩ Min
Impedance                                 50Ω+/-10%
Frequency Range                      DC 0-9GHz
Insertion Loss Max.0.15(~1GHz)
Max.0.25(1~2.5GHz)
Max.0.35(2.5~6GHz)
Max.0.65(6~8.5GHz)
Max.0.75(8.5~9GHz)
Return Loss DC0～3GHz≤-25dB
3～6GHz≤-20dB
6～9GHz≤-12dB
RF Leakage ≤-60 dB up to 9GHz
Shielding N/A
HVIL N/A

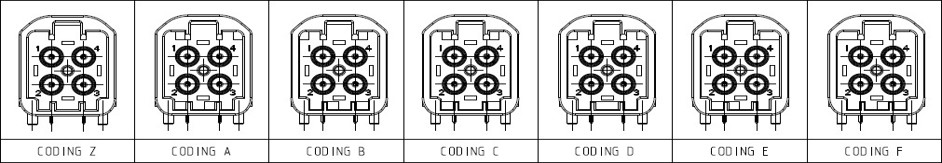

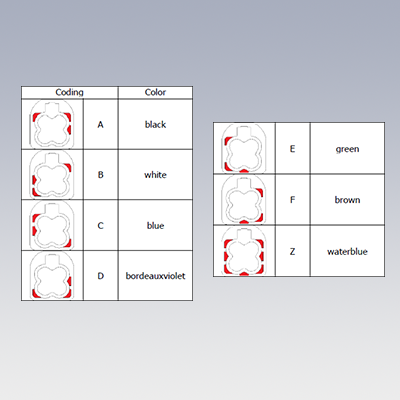

Codierung Mini Fakra

Environment Characteristic

IPGrade(mated)                         N/A
IP Grade(un-mated) N/A
Environmental Standards N/A
Salt Spray 48H
Operation Temperature -40℃ ~ +105℃

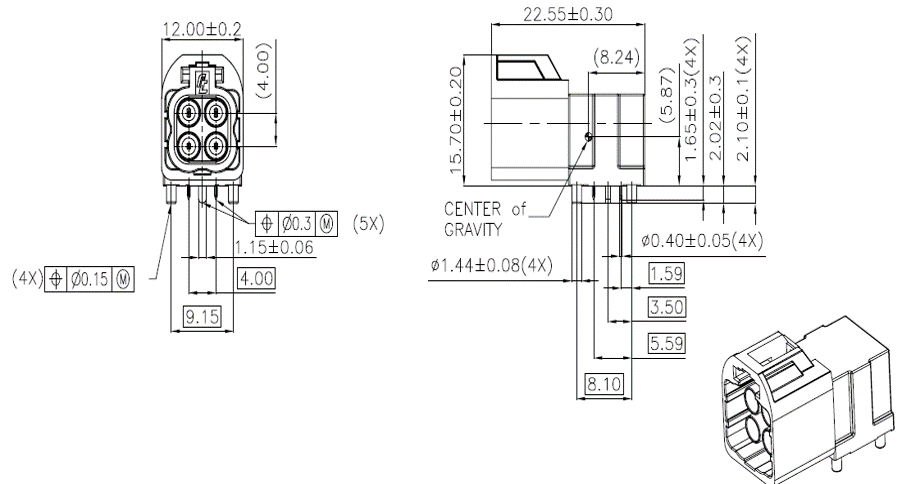

Skizze Mini FAKRA



Produkte der FAKRA-Stecker A

Artikelnummern: :KF8220Y-N1004-7H / KF8220Y-N1006-7H



Physical Characteristic

Durability Life ≥25 cycles
Cable Cross Area N/A
Optional Pole No. N/A
Secondary Lock N/A
Key Code D/F
Pin Pitch N/A
Flammability                              UL94V-0
Prevention Finger Touch N/A
Pin No. 1

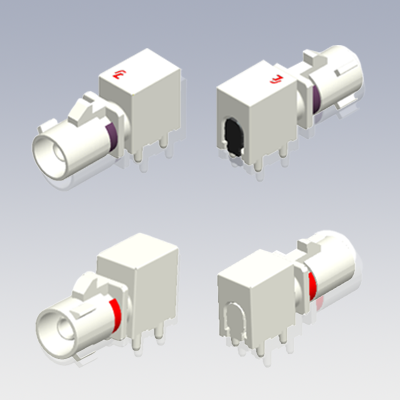

FAKRA A

Electrical Characteristic

Contact Resistance

Initial ：
Inner conductor:40mΩ MAX
Outer conductor:40mΩ MAX
After test：
Inner conductor:40mΩ MAX
Outer conductor:40mΩ MAX
Rated Current 500mA
Rated Voltage 6V
DWV                                        800V AC
Insulation Resistance 100 MΩ Min
Impedance                                 50Ω
Frequency Range                      0-3GHz
Insertion Loss Max.0.3［~3GHz]
Shielding Shielded
HVIL N/A
Skizze FAKRA A

Environment Characteristic

IPGrade(mated)                         N/A
IP Grade(un-mated) N/A
Environmental Standards N/A
Salt Spray 48H
Operation Temperature -40℃ ~ +105℃

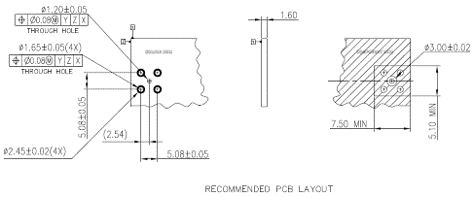

PCB Layout FAKRA A



Produkte der FAKRA-Stecker M

Artikelnummer: KF8220Y-N0003-7H



Physical Characteristic

Durability Life ≥25 cycles
Cable Cross Area N/A
Optional Pole No. N/A
Secondary Lock N/A
Key Code C
Pin Pitch N/A
Flammability                              UL94V-0
Prevention Finger Touch N/A
Pin No. 1

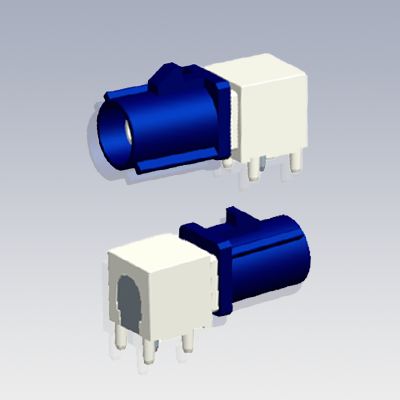

FAKRA M

Electrical Characteristic

Contact Resistance

Initial ：
Inner conductor:40mΩ MAX
Outer conductor:40mΩ MAX
After test：
Inner conductor:40mΩ MAX
Outer conductor:40mΩ MAX
Rated Current 500mA
Rated Voltage 6V
DWV                                        500V AC
Insulation Resistance 100 MΩ Min
Impedance                                 50Ω
Frequency Range                      0-3GHz
Insertion Loss Max.0.3［~3GHz]
Shielding Shielded
HVIL N/A
Skizze FAKRA M

Environment Characteristic

IPGrade(mated)                         N/A
IP Grade(un-mated) N/A
Environmental Standards N/A
Salt Spray 48H
Operation Temperature -40℃ ~ +105℃

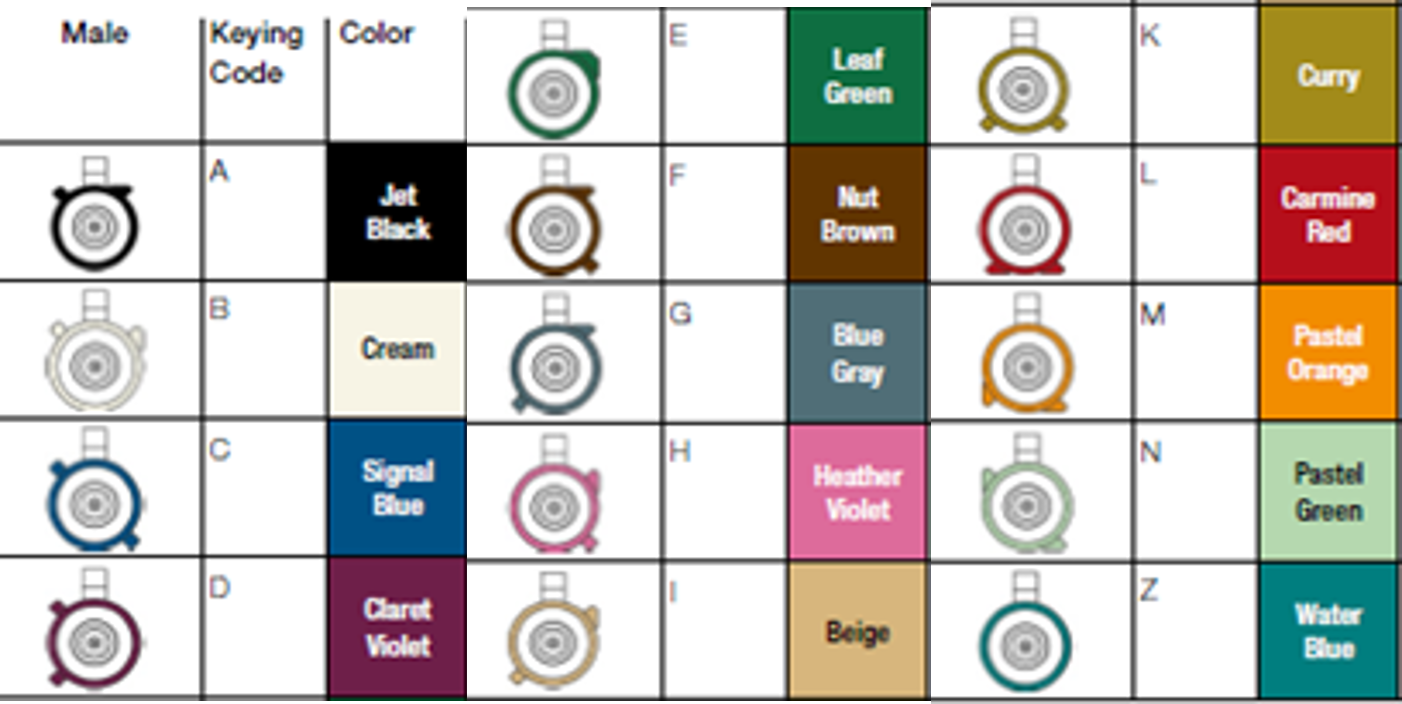

Codierung FAKRA M



Produkte der FAKRA-Stecker R

Artikelnummern: KF82201-N2003-7F / KF82201-N2000-7F / KF82201-N2004-7F

Physical Characteristic

Durability Life ≥25 cycles
Cable Cross Area N/A
Optional Pole No. N/A
Secondary Lock N/A
Key Code C/D/K
Pin Pitch N/A
Flammability                              UL94V-0
Prevention Finger Touch N/A
Pin No. 1

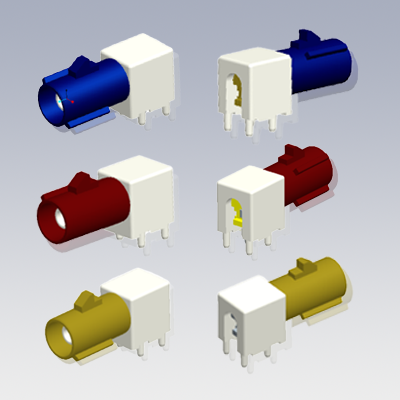

FAKRA R

Electrical Characteristic

Contact Resistance

Initial ：
Inner conductor:40mΩ MAX
Outer conductor:40mΩ MAX
After test：
Inner conductor:40mΩ MAX
Outer conductor:40mΩ MAX
Rated Current 1A
Rated Voltage 6V
DWV                                        750V AC
Insulation Resistance 100 MΩ Min
Impedance                                 50Ω
Frequency Range                      0-6GHz
Insertion Loss ≦0.1X√f(GHz) dB
Shielding Shielded
HVIL N/A
Skizze FAKRA R

Environment Characteristic

IPGrade(mated)                         N/A
IP Grade(un-mated) N/A
Environmental Standards N/A
Salt Spray 48H
Operation Temperature -40℃ ~ +105℃
PCB Layout FAKRA R
